Kawasaki KR1000 Endurance Replica

[Exige]

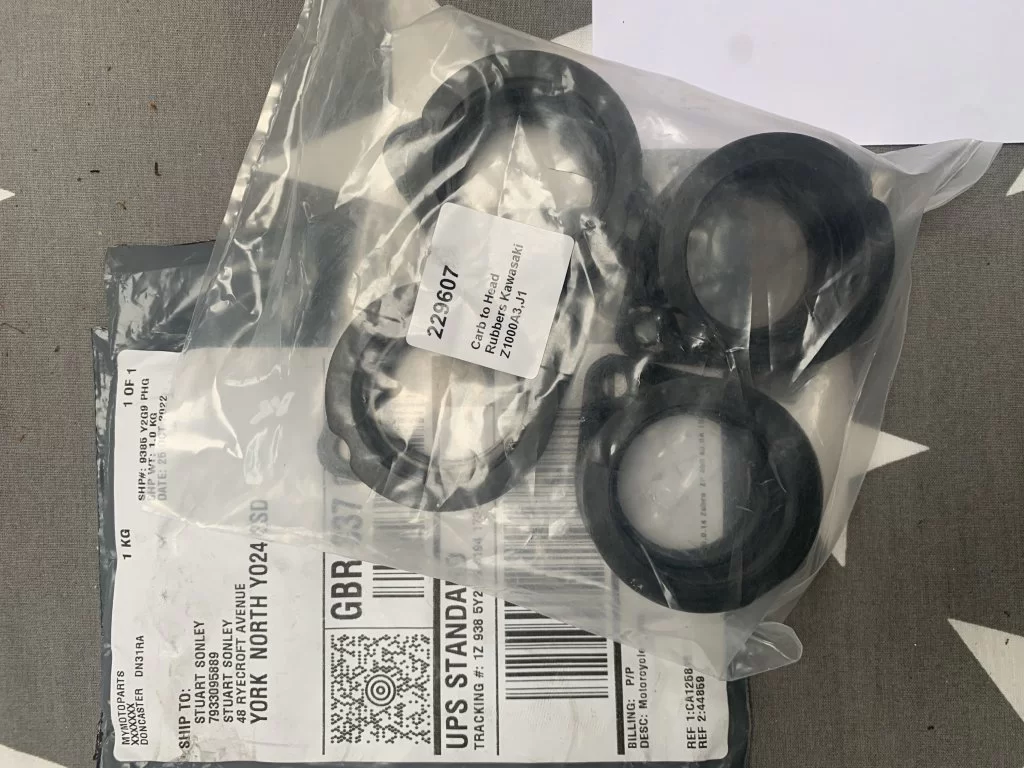

My new carb rubbers came yesterday - I specifically ordered Japanese Tour Max ones off Ebay as they are known for their quality.

There were loads of unbranded ones on Ebay so was careful to order from a listing showing the Tour Max brand and logo, even checked the photo's to confirm. They arrived and the sneaky buggers (my-moto-parts) had sent cheap unbranded ones instead.

Compalined and the asked me to send photo's then replied Oh! our recent supply must have come from somewhere else
Retun sent and suggested they change their listing so as not to waste peoples time, they haven't yet

Confirmed and ordered Tour Max ones from brooksbarnparts off Eaby who I purchased my Tour Max starter clucth rebuild kit off.



[Exige]

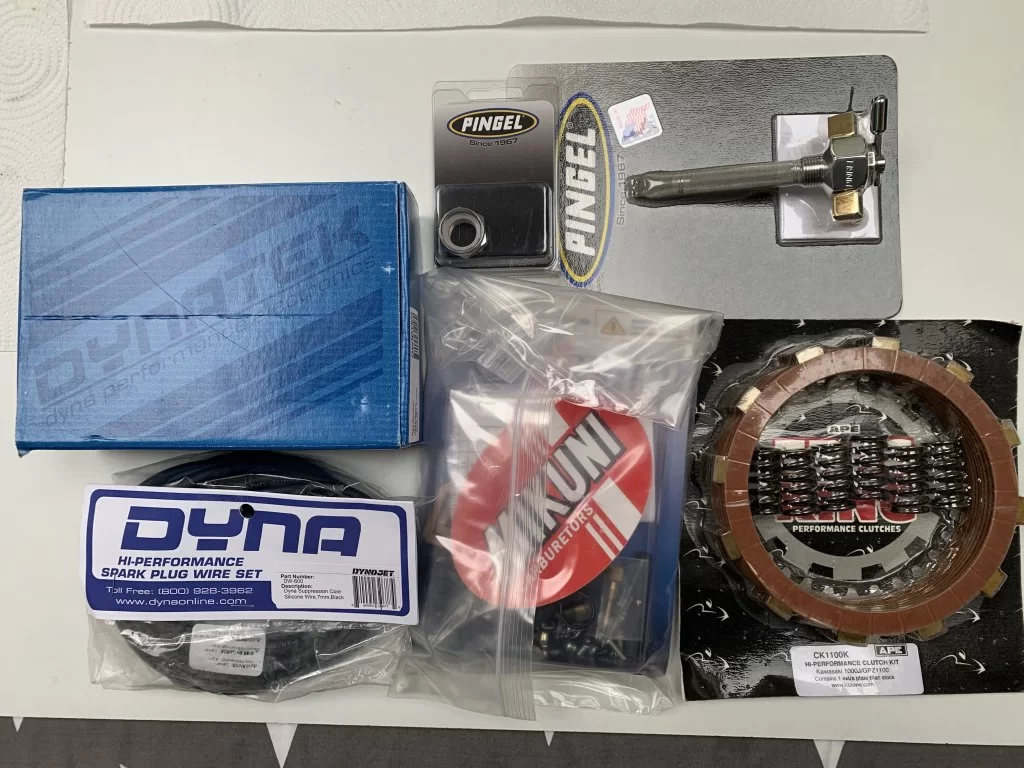

On a more positive note a box of goodies arrived

The Dyna Coils are a bit of a lairy green might have to hide them behind an alloy shield as they are mounted in view - will have a ponder about it.

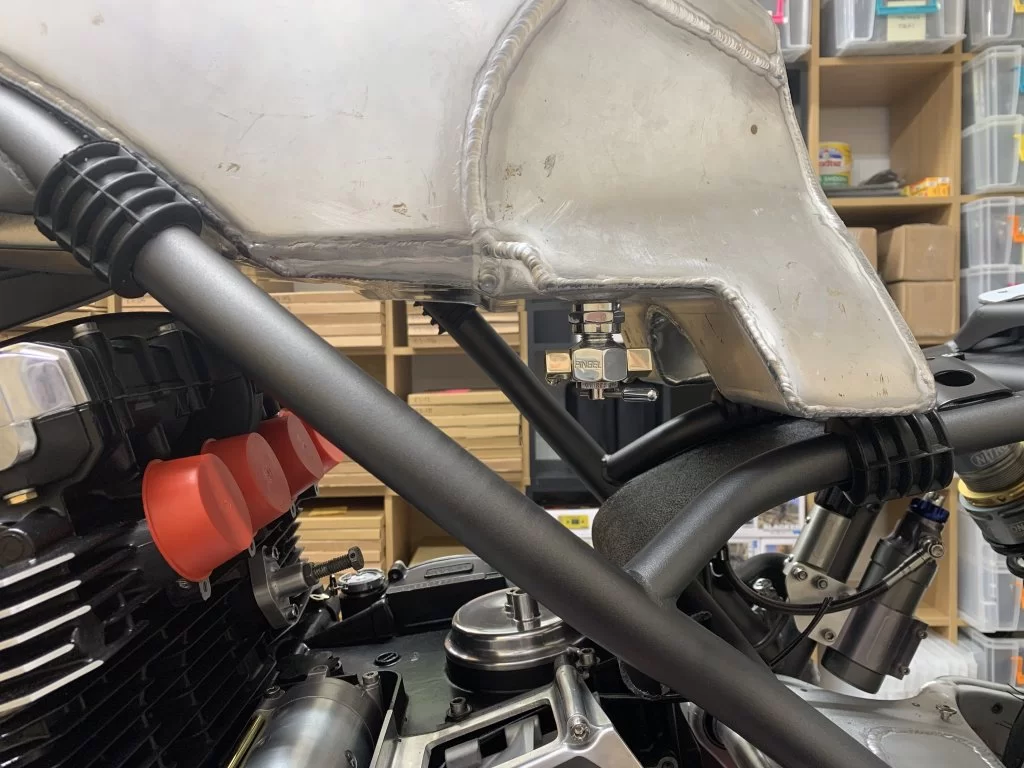

The dual outlet Pingel Fuel Tap is fab - it did have a single fitted before with a branch to the two carb inlets with no issues, but thought I'd go dual as it's more 'proper'.



[Exige]

Electrickery Issues.

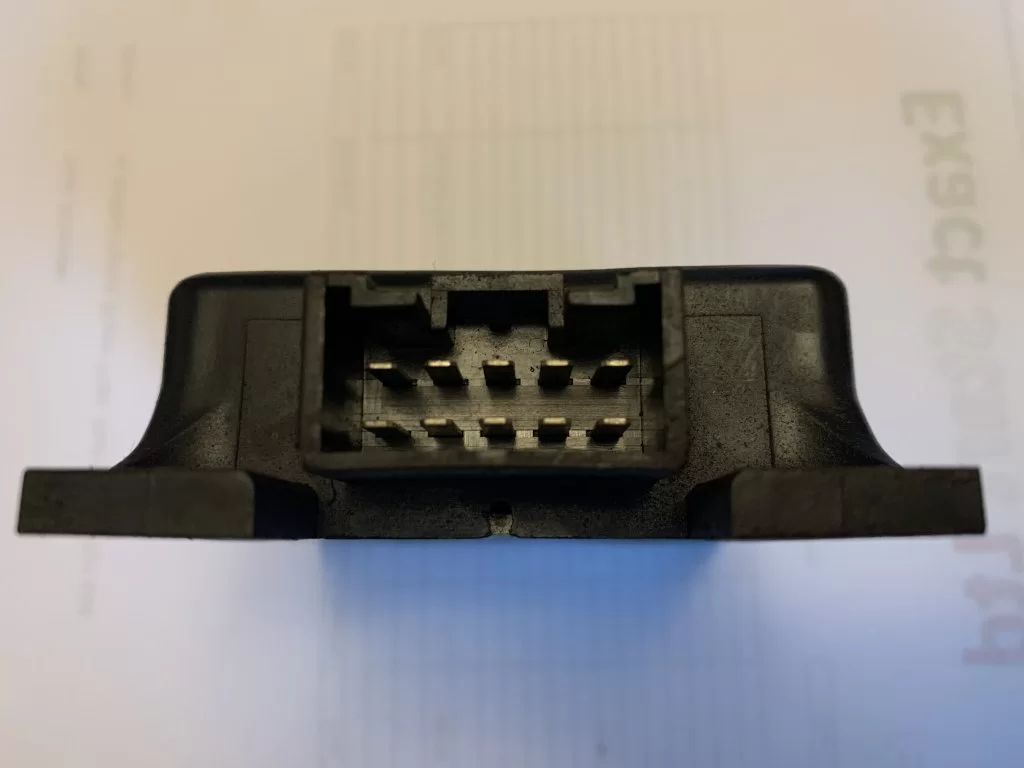

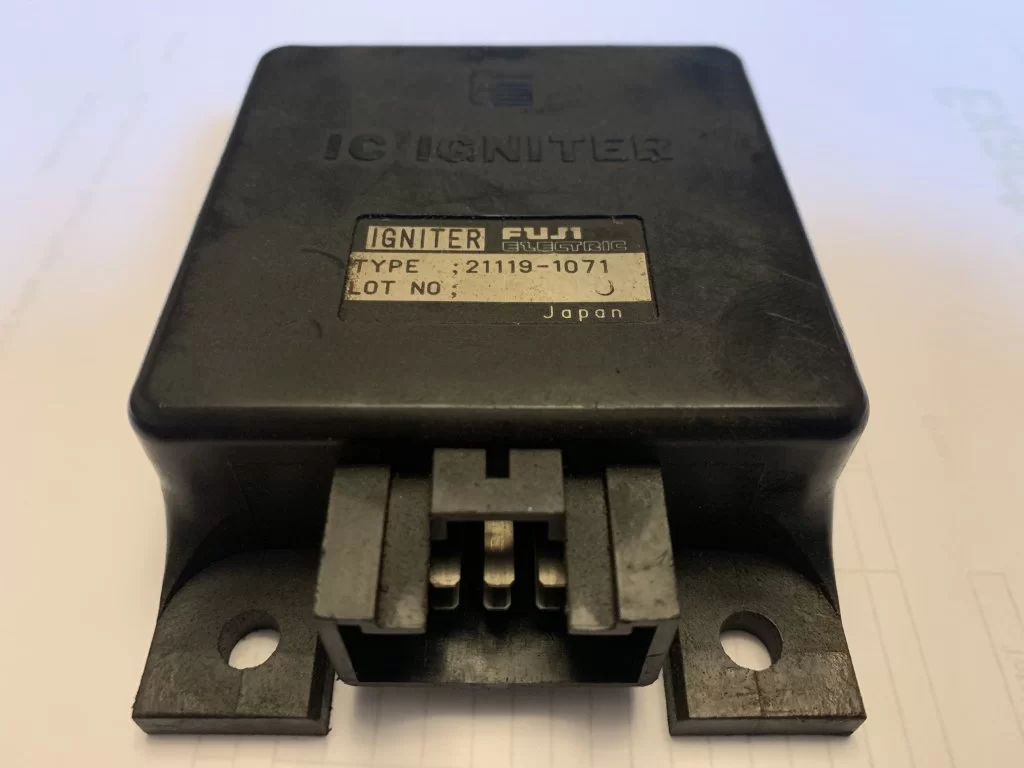

I still have the original Electronic Ignition and Igniter Unit which controls the auto advance on the sparky stuff.

Was considering a Dyna 2000 Ignition module but it needs the older case from a Z1000J engine to fit (which had a mechanical advance which gets ditched).

Before I invest in that little lot I might try the original system as it is said to be very reliable and has just been sat in dry storage for 25 years. The problem being I no longer have the wiring harness so don't know which wires go where

I've Googled to no avail for a terminal diagram as the Workshop Manual doesn't show it.

Any Electrical Wizards out there that either know or know where to find out the info. @chrisw maybe or @Derek

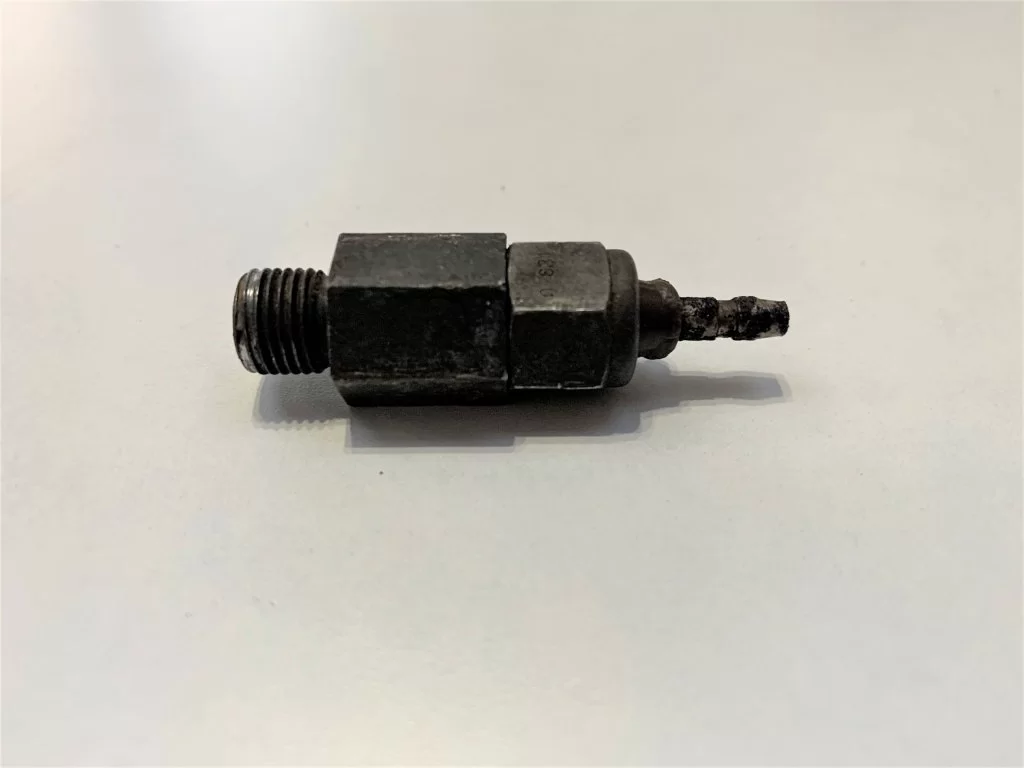

Also, I could do with a new temp sensor that screwed into the Cyclinder Head (Air Cooled) as I was going to wire up an idiot light to it. The current one is looking a little sad and they haven't sold them as spares for over 10 years.
Any help would be much appreciated on either of these issues



[Noobie]

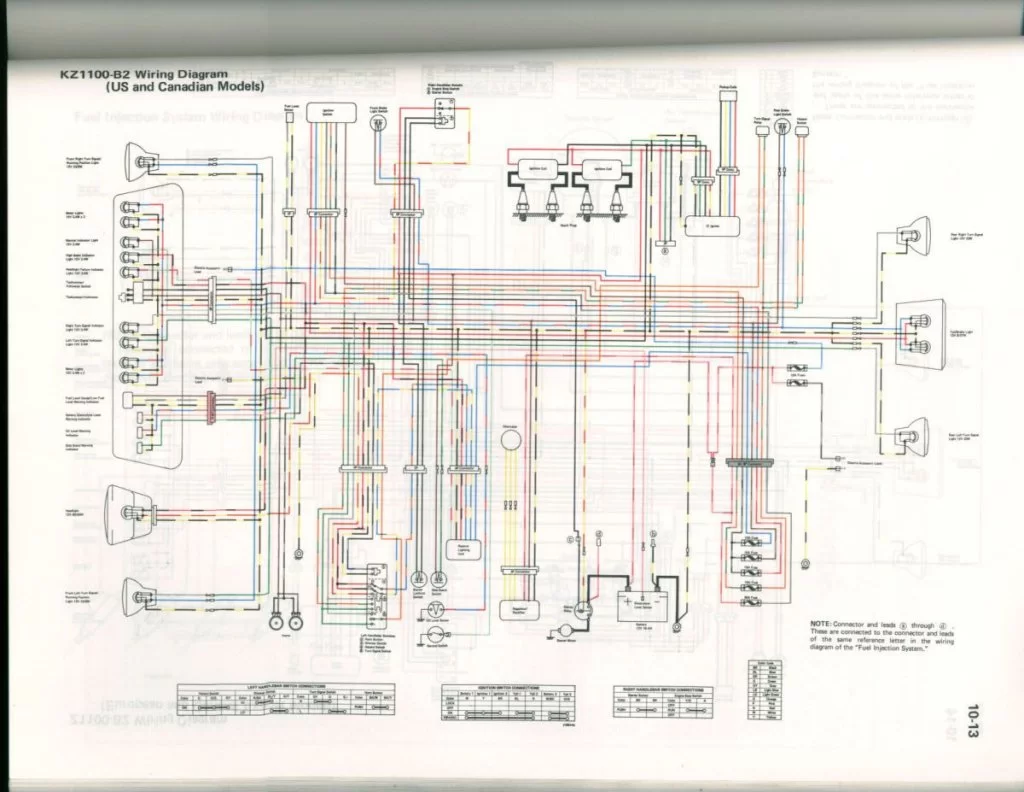

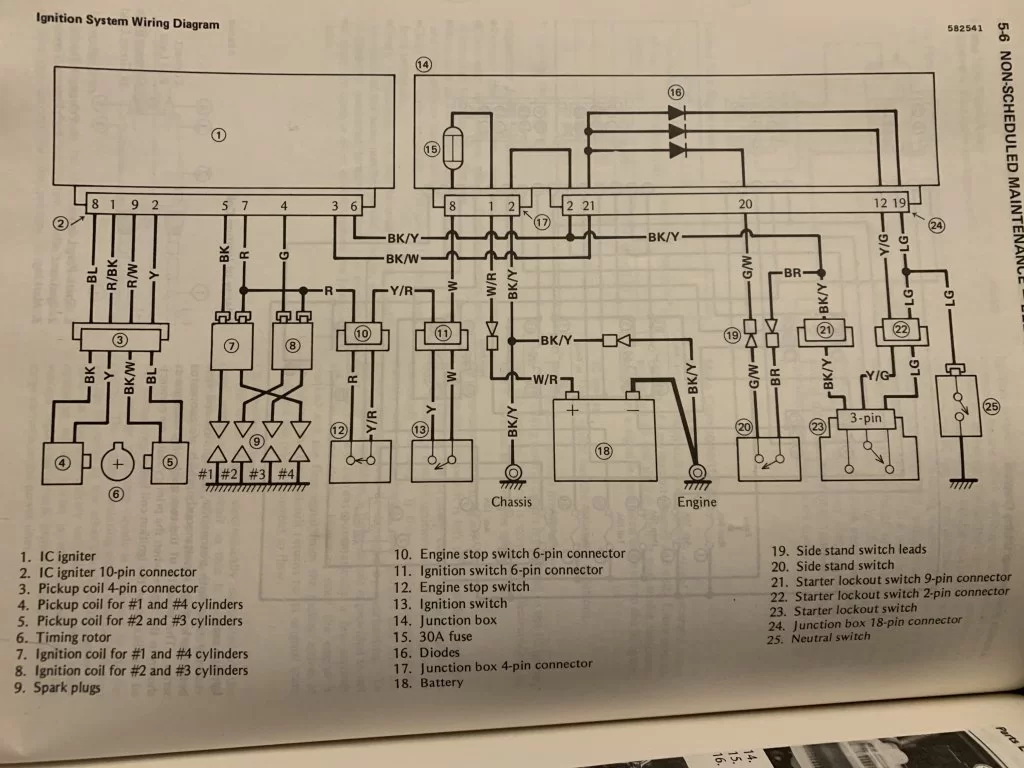

Is this any good



[Exige]

Is this any good

No, the Igniter is from a GPz1100 A1/2/3 and I need the terminal diagram. The Kawasaki Workshop Manual shows wire colours going in, but not which goes to which terminal (top or bottom)



[BobTheBounder]

Is this any good

Thats for an old 6v moped



[BobTheBounder]

this may be of help Exi



[BobTheBounder]

forget that it looks totally shit



[Exige]

forget that it looks totally shit

Have you got a wiring harness lying about



[BobTheBounder]

Have you got a wiring harness lying about

I have my 750 harness hidden in the garage somewhere, I dig it out for ya auld lad



[Exige]

I have my 750 harness hidden in the garage somewhere, I dig it out for ya auld lad

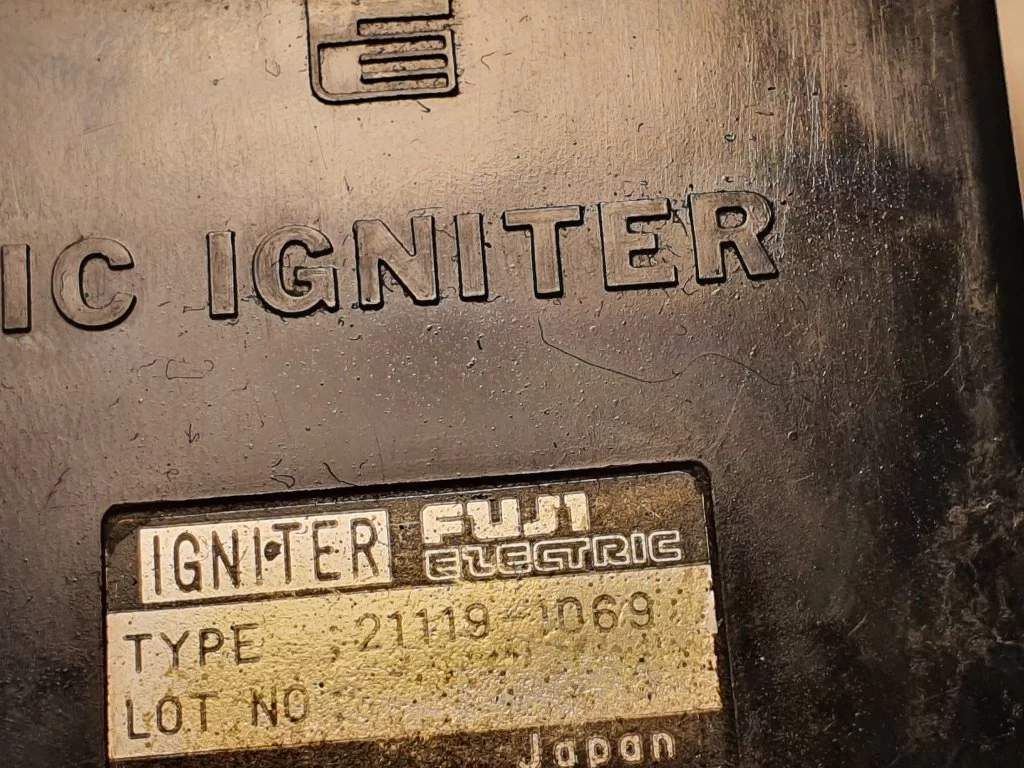

Cool, could do with seeing it plugged in to the igniter showing all the wire colours if possible - oh, and check it’s the same Fuji part number as I’m sure it will be



[Noobie]

Why you worrying about the electrics, it's never going to leave the kitchen

Igniter GPz1100 A1/2/3 terminal diagram - Google Search



[Exige]

Why you worrying about the electrics, it's never going to leave the kitchen

It’s never seen the kitchen it’s in the front garage with the 3 bikes I use all the time, try it yourself: it might stop your frustration



[Fight the streets Fmd]

Not decided yet it's all a bit whitchcraftery to me but I didn't want an ignition switch showing on the yoke.

Go stealth modern , electronic keycard and start button , keycard in your wallet with your fiver for a pint



[Noobie]



[Noobie]

Go stealth modern , electronic keycard and start button , keycard in your wallet with your fiver for a pint

Fiva for a pint He's yorkshire tha knows, not bloody Gloucestshire



[Fight the streets Fmd]

Fiva for a pint He's yorkshire tha knows, not bloody Gloucestshire

Not many places where you can buy a pint for under a fiver, you have to go out more



[NBB]

Buttershaw working men’s club. £1 a pint still.



[Exige]

Not many places where you can buy a pint for under a fiver, you have to go out more

Witherspoon's Ruddles Best was £1.59 last time I was there, but I splashed out on Doombar at £2.19
Dearest I've found for bitter so far in York was a heady £4.95 last week, won't be going there again in a hurry



[BobTheBounder]

Should be a good guide mucker!



[Exige]

Should be a good guide mucker!

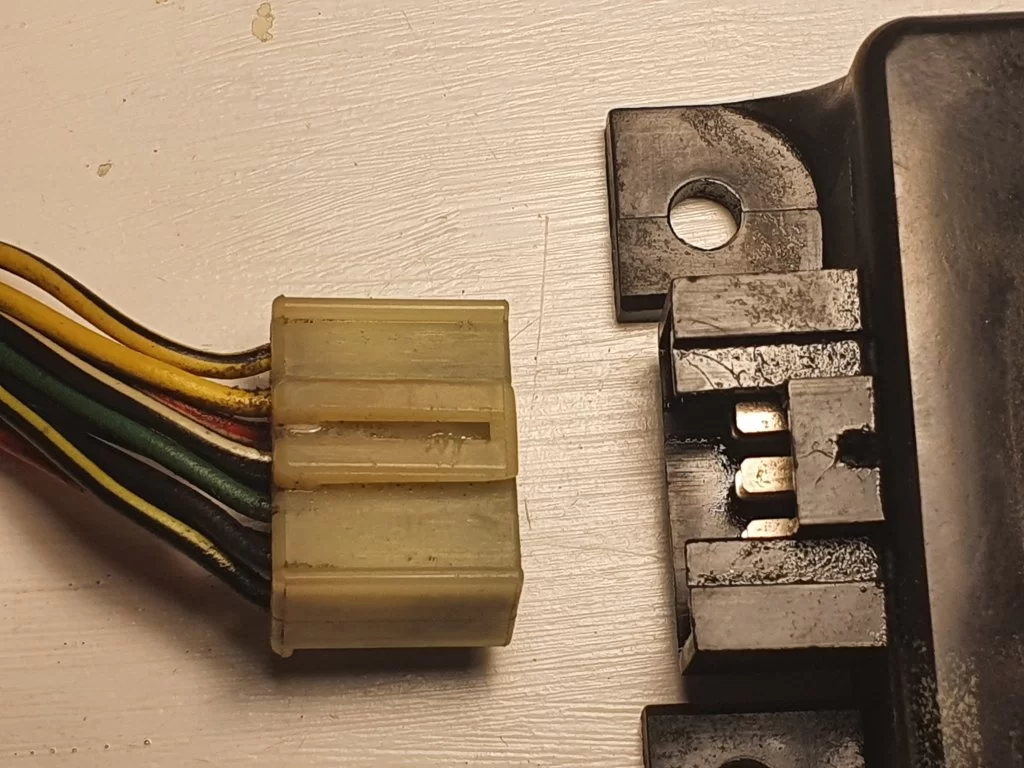

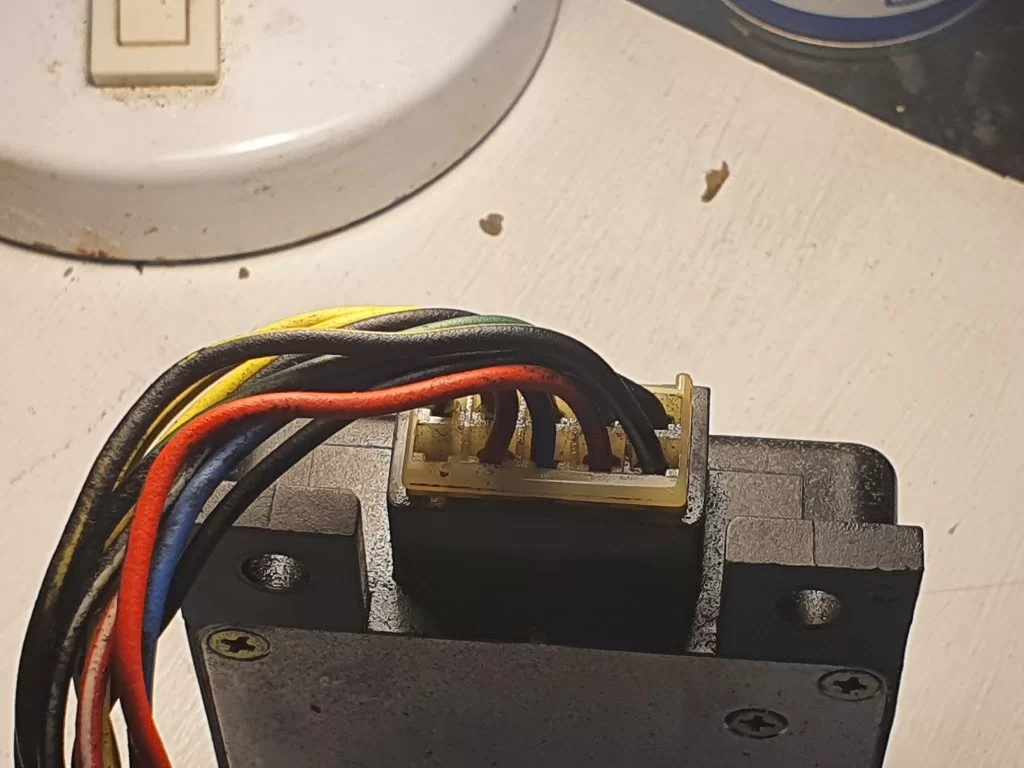

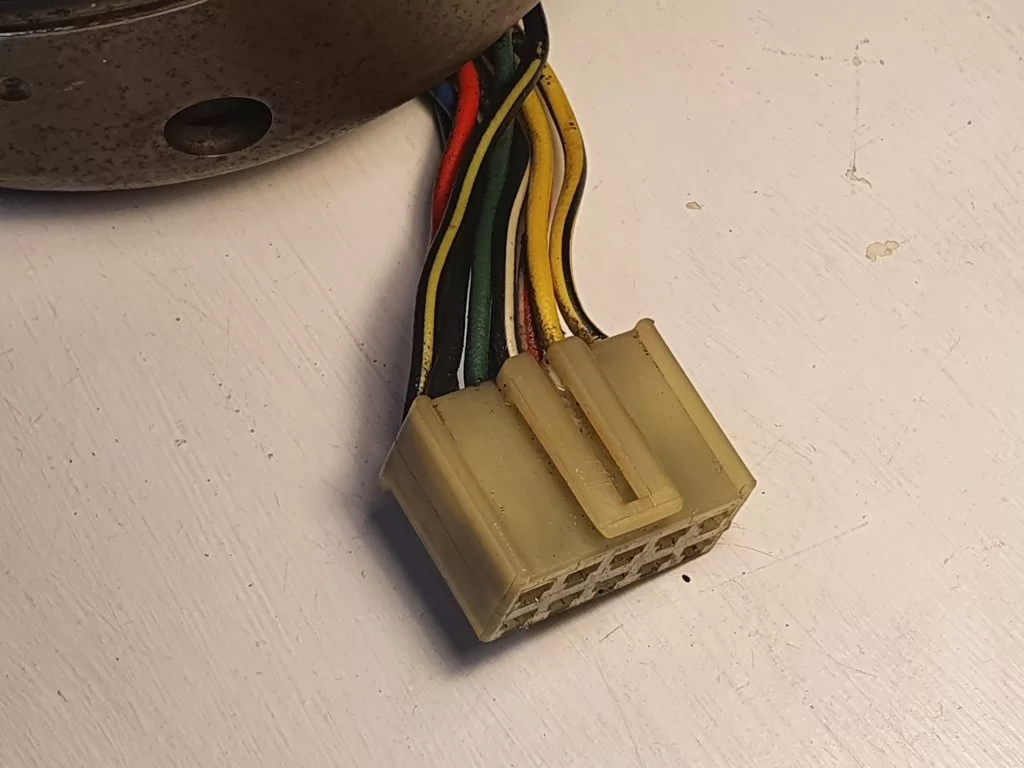

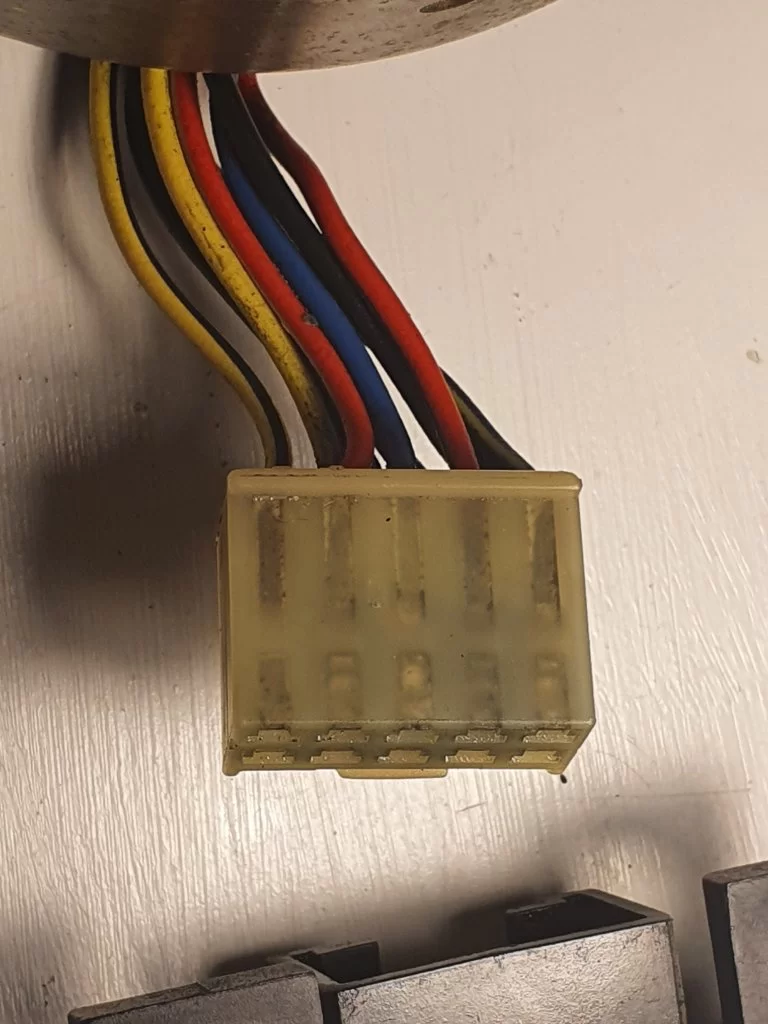

View attachment 63773View attachment 63774View attachment 63775View attachment 63776View attachment 63777View attachment 63778

Cheers I will see if it corresponds to my pick up wires and manual



[Fight the streets Fmd]

Witherspoon's Ruddles Best was £1.59 last time I was there, but I splashed out on Doombar at £2.19
Dearest I've found for bitter so far in York was a heady £4.95 last week, won't be going there again in a hurry

You better don’t come to Cheltenham races, you might have to drink tap water



[wroughtironron]

Buttershaw working men’s club. £1 a pint still.

My company car got stolen off my driveway in 1990 and bits of it were found in Buttershaw



[Exige]

Should be a good guide mucker!
View attachment 63773View attachment 63774View attachment 63775View attachment 63776View attachment 63777View attachment 63778

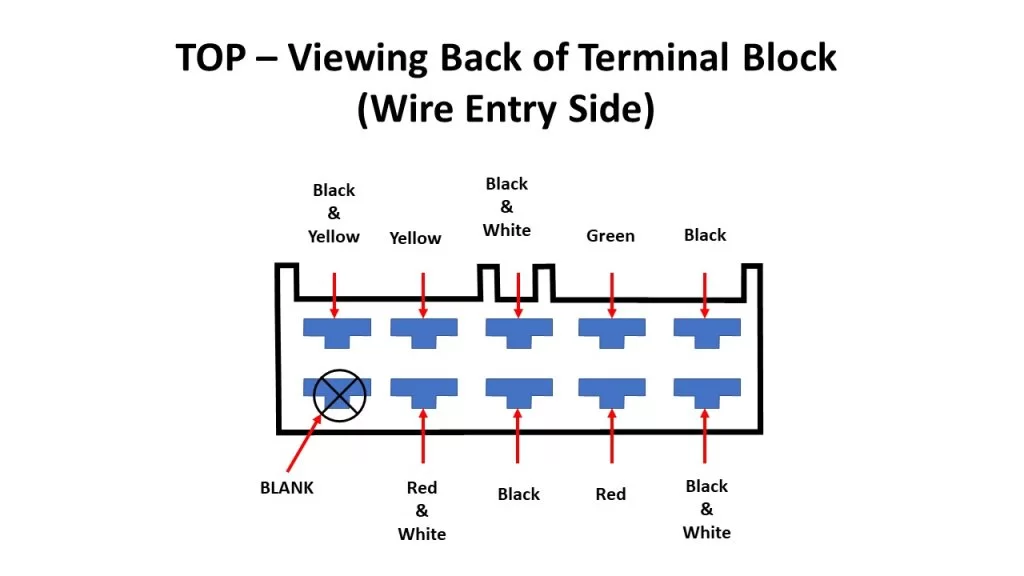

Couldn't quite make them all out but this is where I got to if you can confirm

Viewing this way...



[SHarper]

Top left is Yellow and Black rather than Black and Yellow
I think the black on the top left is Blue
and the Black and white on the bottom is Black and Yellow
is how I see it, but I might be a bit affected



[Exige]

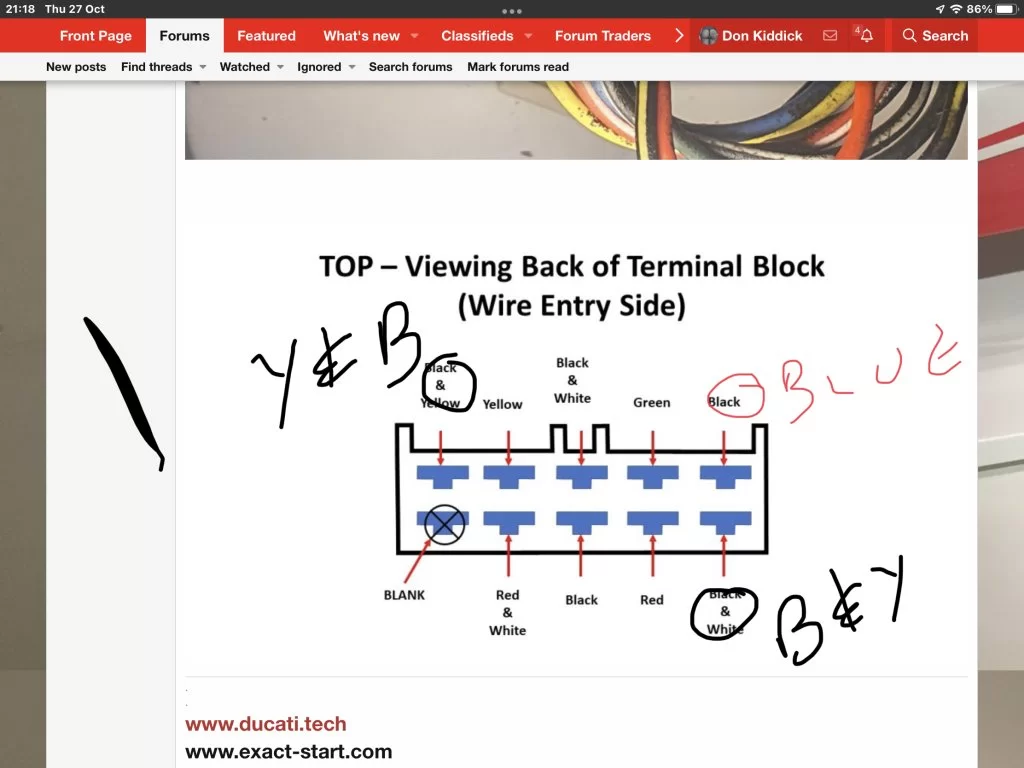

View attachment 63795


Top left is Yellow and Black rather than Black and Yellow
I think the black on the top left is Blue
and the Black and white on the bottom is Black and Yellow
is how I see it, but I might be a bit affected

Top right Blue you mean - thanks for your efforts



[Exige]



[BobTheBounder]

Hang on boys need to go back in garage to check!



[BobTheBounder]

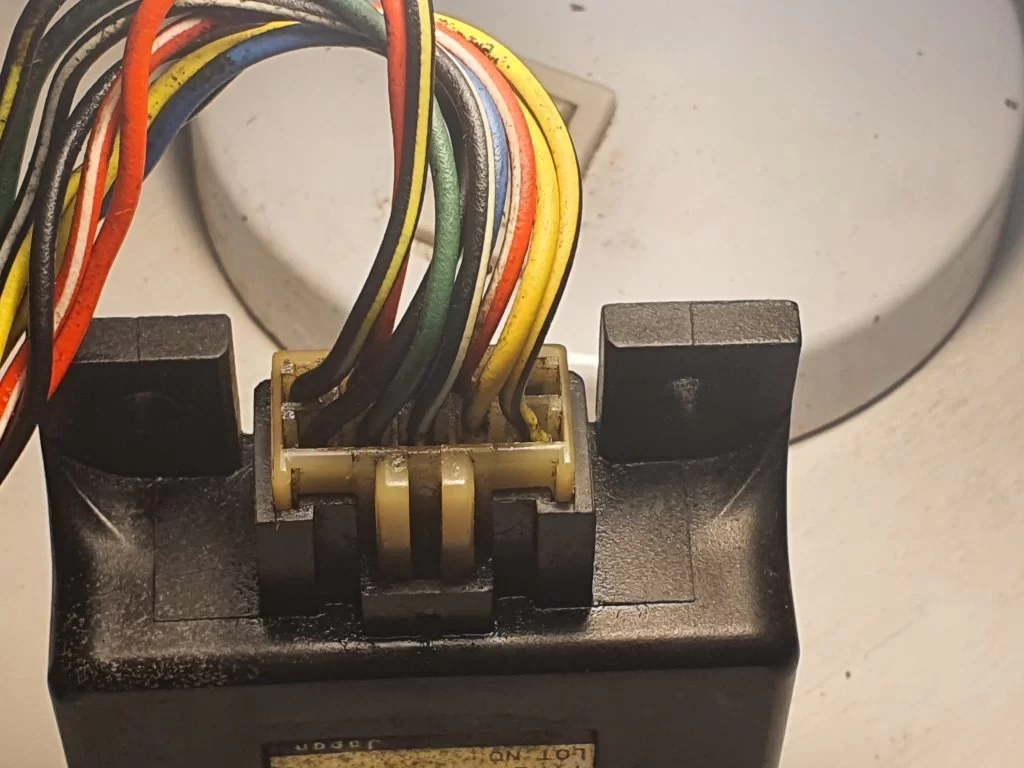

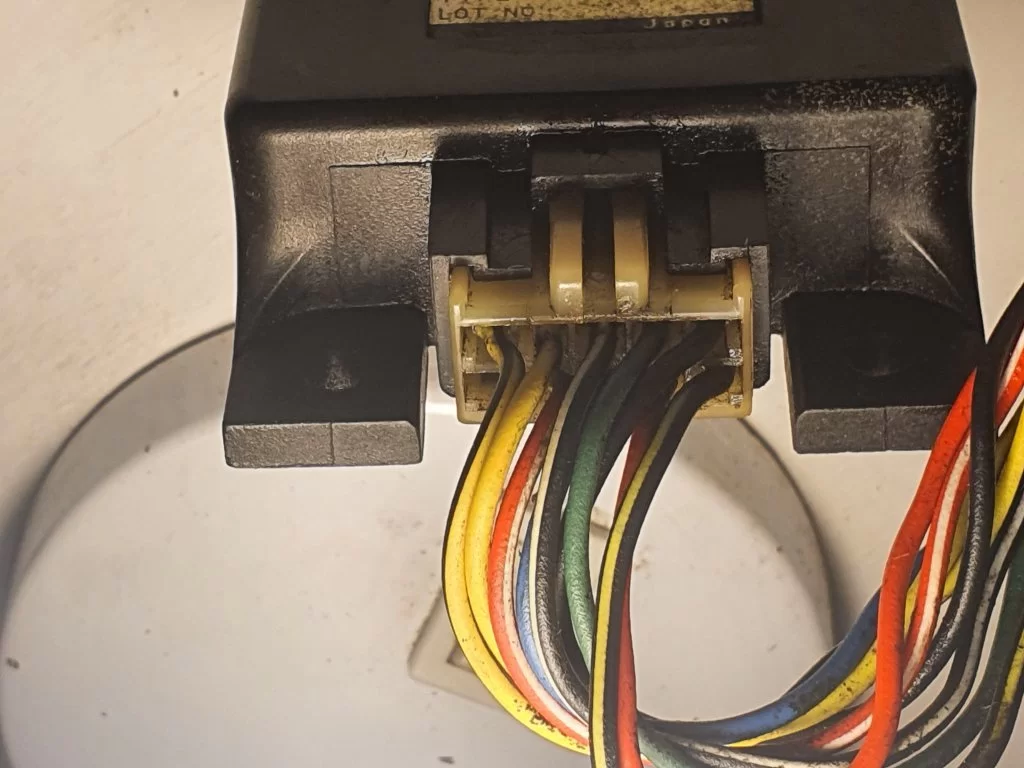

Right! From the top left,
Yellow/Black Yellow Black/White Green Black
Blank Red/White Blue Red Black/Yellow
HTH



[BobTheBounder]

Pin numbers, again from top left
1, 2, 3, 4, 5
Blank, 9, 8, 7, 6
